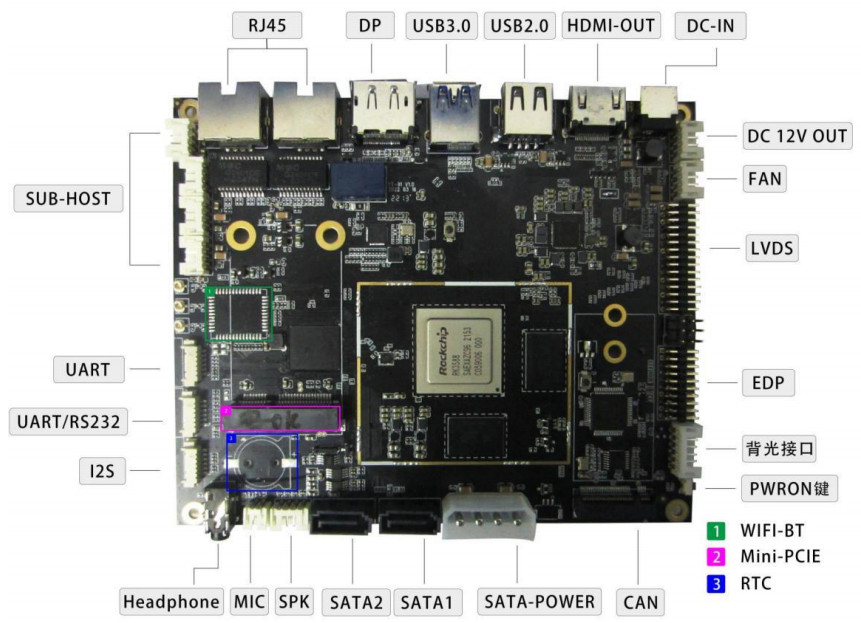

YT-90 RK3588 Rockchip PCBA for High end tablet AR VR ARM PC NVR
Yt-90 is a motherboard based on Ruixin micro rk3588. Rk3588 is a new generation flagship high-end processor launched by Ruixin micro. It adopts 8nm process design, is equipped with four core A76 + eight core CPU of four core A55 and arm high-performance GPU, and has built-in 6T computing power NPU. With strong visual processing ability, it can support a variety of fast face unlocking schemes such as structured light and TOF; Support rich display interfaces, up to 8K display processing capacity; It has strong scalability and supports pcie3 0,SATA3. 0. Dual typec / usb3 1 and other high-speed interfaces can be used for AI computing power, image data processing and other extensions. It is used in armpc, high-end tablet computer, edge computing server, virtual reality, NVR, 8K TV and other directions.
Electrical and Structural Parameters
| Electrical Parameters |
| input voltage | 4.2V/5A |
| output voltage | 1.8v/3.3v (sleep voltage: 0V after system sleep) |
| Working temperature | -10~70 degrees [actual measurement can reach -40 degrees to 80 degrees] |
| | |
| Structural parameters |
| Appearance | Stamp hole mode |
| Core board size | 85mm*85mm |
| Pin distance | 1.2mm |
| Pin pad size | 1.25mm*0.7mm |
| Pin quality | 320PIN |
| Layer | 8 layers |
Scope of application
Ruixin micro rk3568 chip is a general-purpose SOC designed for consumer industry applications. The CPU adopts 4-core A55 architecture processor, integrated G52 graphics processor, built-in independent NPU, and runs Android 11 and Linux systems. Rk3568 is mainly customized for tablet computers, speakers with screens, Android laptops, dictionary pens and other consumer products, as well as face payment POS machines, e-books, cloud terminals, video phones, NAS storage and other industrial products.
