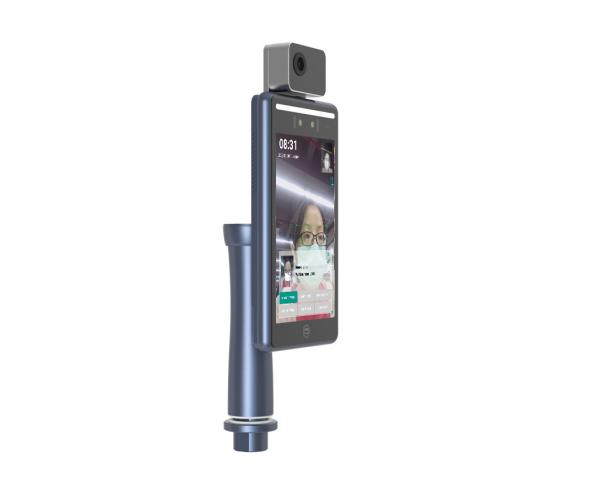

We adopt RK3399 six-core high-performance CPU, this is the best CUP in the market, with the fast running speed. and the temperature detection module is HIKvision brand. its resolution has reach to 160*120, with higher accuracy, longer distance, and more stable performance.
If the product meet your demand, please feel free to contact us. We're sure your any inquiry or requirement will get prompt attention.
Application settings:
[Change administrator password]: Modify the password of the device about long pressing the upper right corner.
[Switch language]: Switch application language.
[Voice Prompt mode]: There are 3 modes: sound prompts, voice prompts, and custom voices. The sound prompts are just short sound effects. The voice prompts are short sentences. custom: According to the region habit, customers can configure the voice by themselves. The following will write how to add custom voices.
[LOGO]: Name the LOGO file with “logo.png”, and save it in the root directory of the USB flash drive. It is recommended that the height should not exceed 196px. Insert the U disk and click the slide button.
[Custom screen saver]: Name it “screenSaver.png” to store in root directory of the USB disk. It is recommended that 800*1280px or 1080*1920px size. insert U disk and slide button.
[Screen saver time(seconds)]: Idle time Screen saver access time
[Update application]: Rename the upgrade file to “update.apk”. store update.apk to the root directory of the U disk, and insert the U disk into the device. and click the file name in the device to start update.
| Interface Parameters | Antiwithdrawal Key | Suppot |
| Ethernet | 100M |
| 232/dry contact | Support |
| USB | 1*USB |
| RS485 | Support |
| Wiegand | Support |
| GPIO | Support |
| Relay | Support |
| MICPH0NE | Support |
| Card-swiping Parameters (optional) | Protocol | Support IS0/IEC14443A,IS0/IEC14443B |
| Frequency | 13.56MHz |
| Read Range | 0-50mm |
| Other Parameters | Installation | Support wall-mounted, turnstile gate, floor stand, desk top |
| Operating Voltage | 12V/1.8A |
| Operating Temperature | -10°C~60°C |
| Protection Grade | IP67(don’t support temperature detection models) |
| Standard Accessories | Manual, power adapter, screws |
| Optional Accessories | Gate post,floor stand |
| Basic Parameters | Touch Screen | 2. 5D Capacitive touch screen |
| Screen Size | 8” |
| Screen Resolution | 800 * 1280 |
| Operating System | Android 7.1 |
| CUP | Six-core, double Cortex-A72+4 Cortex-A53 |
| RAM | 2G |
| Memory | 16G |
| Camera | Infrared eyes, 200W wide dynamic range |
| Camera Resolution | Medical grade infrared thermometric module, accuracy ±0.3℃ |
| WI-FI | Support |
| Bluetooth | Optional |
| Body Induction | Support |
| Fill Light | white, red, green |
| Dimensions | 239*134*20. 6 mm |
| Net Weight | 1110g |
=
2300 workers, 45000 ㎡ non-dust workshop, 18 years experience, ISO, CE, FCC, Rohs certificated, located in Shenzhen China, this is how we keep good quality and competitive prices for global valued customers.
The all in one device is widely use in office, hospital, smart building, super market, school, and so on, we have some videos for you easy understand the operation of the products, please let me know if you need it.
