10.1 Inch RK3399 Android 7.1 Touch Screen Face Recognition Body Temperature Measuring
What distinguishes us from other factories is that we have complete production control capabilities, beginning from SMT, to welding, assembly, and packaging, all proceed in our own dust-free 45000 square meter workshop, which basically guarantees the smooth progress of every procedure.
There are 170 engineers including ID/MD engineer, app solution development engineer, electronic engineer, process engineer, and we support online management platform open to customized SDK API.

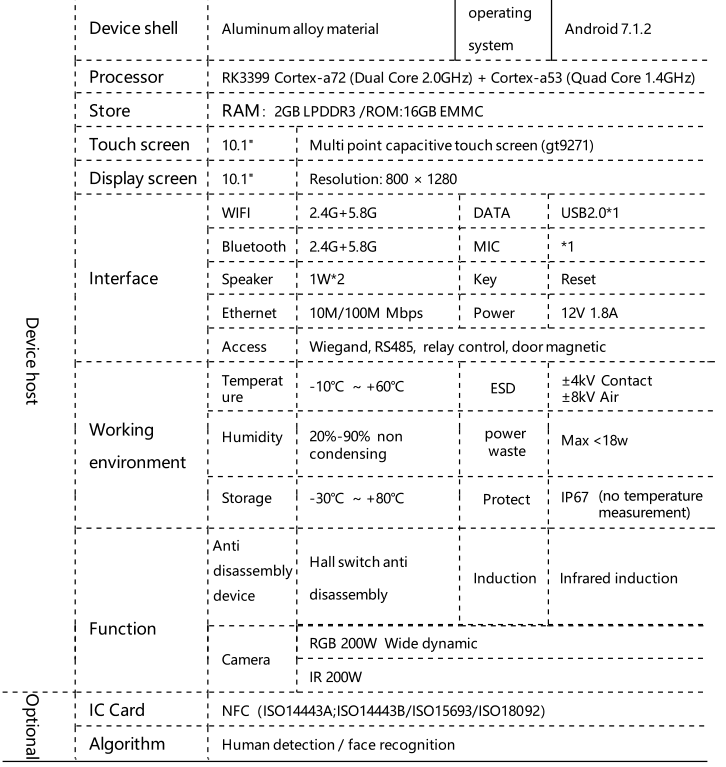

Basic Parameters
|
Card-swiping Parameters(Optional) | Protocol | ISO14443A/ISO14443B/ISO15693/ISO18092/IC |
| Frequency | 13.56MHz |
| Read Range | 0-30mm |
| Body Temperature Probe(Optional) | Thermometric Accuracy | ±0.3℃ |
| Thermometric Distance | 0.3m-2m |
| Thermometric Range | 30℃~45℃ |
|
Other Paramters | Installation | Support standard 86 box wall mounted, gate (optional), desk (optional) |
| Operating Voltage | 12V/2A |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -30℃ ~ +80℃ |
|
Basic Parameters | Touch Screen | Capacitive touch screen |
| Screen Size | 10.1” |
| Screen Resolution | 1280*800 |
| Operating System | Android 7.1 |
| CUP | RK3399 Six-core, double Cortex-A72+4 Cortex-A53 |
| RAM | 2GRAM |
| Memory | 16GROM |
| Camera | HIKvision, Infrared eyes, support wide dynamic range |
| Camera Resolution | Double 200W |
| WI-FI | (2.4G&5.8G)802.11 ac/a/b/g/n |
| Bluetooth | Bluetooth 5.0 |
| Body Induction | TOF |
| Body temperature | Infrared temperature measurement module, 160*120 resolution |
| Dimensions | 315*166*23mm |
| Microphone | MIC*1 |
Applications:
Smart Industrial Park | Smart Community | Smart Campus
Smart Industrial Park Solutions
Smart industrial park solutions, use sophisticated AI vision technologies, such as facial recognition, image recognition, with advanced “cloud + terminal” capabilities, provide complete solutions for smart industrial park, smart community, and smart campus.
Face-Scanning Access, Free Your Hands
Batch submission of owners’ information, face scanning and pre-recording of visitors, convenient access without waiting
Stranger Alert
AI and CCTV monitoring, rapid distribution of alarm information, blacklist alert, and security follow up
Track Record, Behavior Track Analysis
Automatic park guide, visitor track record, crowd density heat map
System-Support Secondary Development
Standard Web API interface to facilitate system integration
Product Tags:
|
|
RK3399 Android 7.1 Face Recognition Body Temperature Measurement System 10.1 Inch Images
|
